OKIPAGE

12i

User’s Guide 3

➦

1 Setting Up Your Printer

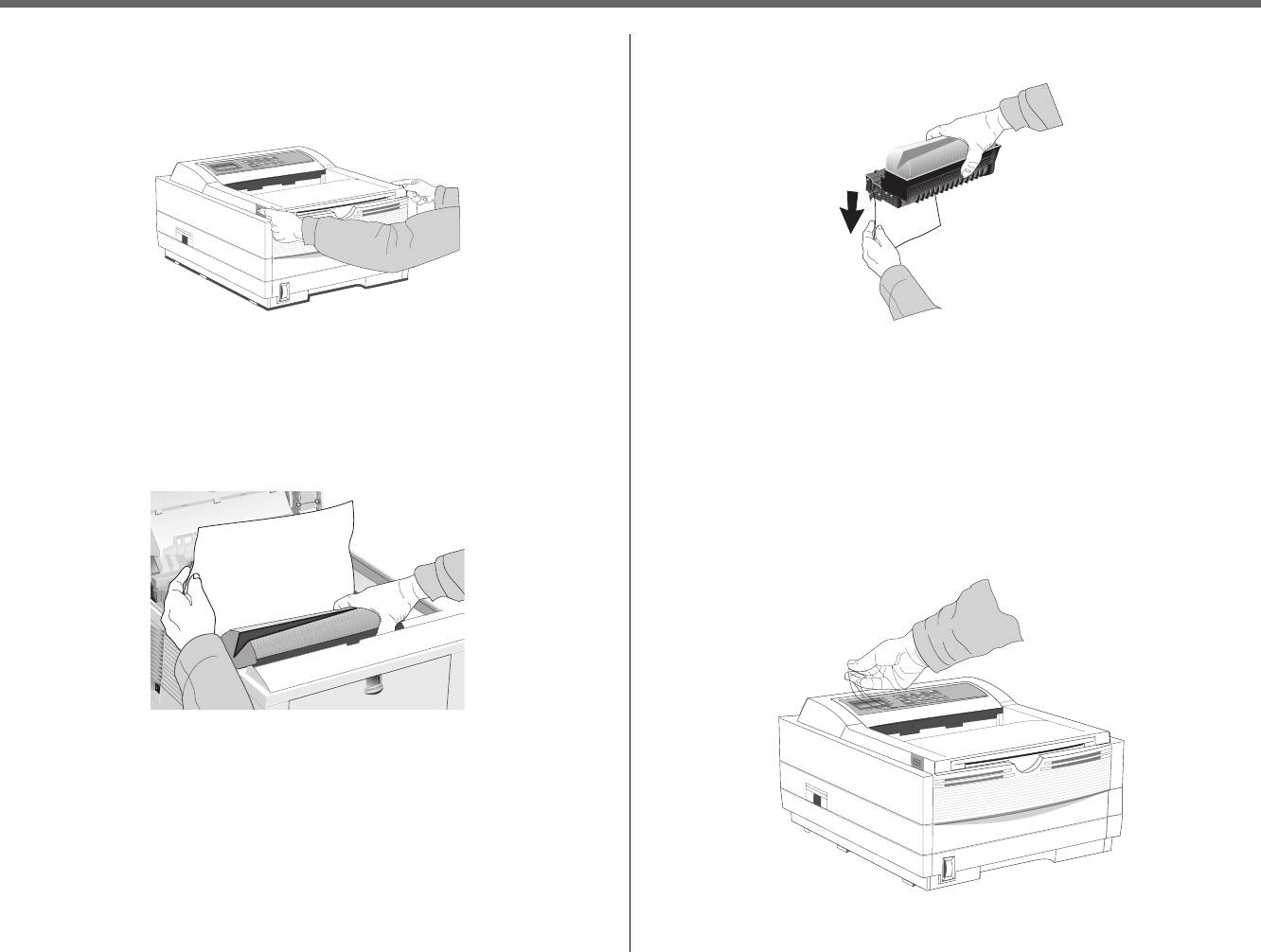

Remove the Image Drum Protective Paper

1. Press the cover release buttons and lift the cover.

2. Lift out the image drum cartridge. Do not touch the drum’s

green surface.

➯

Only the OKIPAGE 10 and 12 Series Type 5 Image Drum will fit

in this unit (Part# 40433305)

3. Remove the protective paper from the image drum.

4. Reinstall the image drum cartridge in the printer.

Removing Operator Panel Protective Film

Lift up the corner and peel the protective plastic film from the control

panel.

LETTER

LEGAL A4 OTHER

ENV

READY

ATTENTION

MAN FEED

DATA
